AUTOMATIC LABELING MACHINE

• Speed about 20-35cpm
•  Labeling accuracy: + or - 0.0393 inch (does not include product label errors).
• Applicable product size diameter 1.1811-4.331 inch Height 1.1811-13.779 inch
• Applicable label range length 0.393-10.236 inch
• Bottom paper width  0.393-5.906 inch
• Maximum label supply  OD 11.811 inch or less. Inner diameter 2.992 inches.
• Ambient temperature/humidity  0-122 FI 15-85%.
• Power 220V  50Hz
• DIM  L82.677-W51.181-H66.929 inches.
• Weight  418.878 pounds.
• Label spacing: 0.079-0.118 + or - .0079
• Labeling method for roll material. Material it is   recommended to use Glassine paper, the bottom paper to avoid cuts affecting the normal operation of labeling.

All Machines Comes With A One Year Warranty.

Contact Us For Quote Or Financing

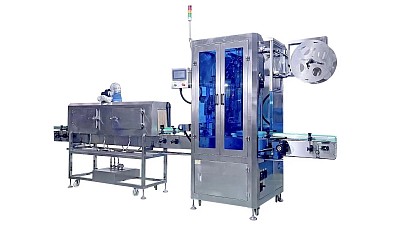

The S.W.L 300 is a high speed shriek wrap labeling machine comes equipped with heat tunnel wet or dry. Machine is perfect for Labeling  Glass, plastic, Aluminum or Tin containers. Machine is constructed out of 304 stainless steel. The S.W.L is suitable for a  wide range of Round Containers. Custom machine also available for special shape containers. Machine is capable of speeds up to 300 cpm depending on Sleeve Cut Length Shape of container and Shrink percentage of Sleeve. Machine comes with  Pre-Fixing  hot air/ steam Nozzle will Set the Sleeve Position at Top or Bottom of container before  entering into Shrink Tunnel.

•  Labeling Speed 300 cpm
• Bottle Diameter 1.1 inch -4.92 inch can customize according to your product,
• Bottle Height 1.1 inch 11.02 inch,
• Applicable Label Length 1.1 inch-11.02inch
• Applicable Label Thickness 0.0011 inch -0.00051,
• Applicable Roll Label Inner Diameter in 0.63inch
• Applicable Roll Label Outer Diameter max 19.69 inch
• Power 220V
• Weight 2650lb

All Machines Comes With A One Year Warranty.

Contact Us For Quote Or Financing

The S.T.G roll through labeling machine labels by the cans rolling into the machine and passing through a series of hot glue adhesive applicators. Then the container rolls with glue and presses the front of the label on. Simultaneously the end is glued on. When the container is being fed through the machine the label will be permanently applied. This machine has alternately label supply mechanism. There is no need to stop the machine when adding labels. Machine has automatic safety cut off. will not supply glue without containers being present

• Speed200-500 cpm
• label sizes 202 to 603
• Labeling glue: Hot melt glue + Cold Glue
• Power : three-phase 380Vol
•  Compressed air 2-4Kg/m2, 10 L/ min Overall
• DIM 6ft × 2.5ft × 4.1ft
• Weight 1,433lb

All Machines Comes With A One Year Warranty.

Contact Us For Quote Or Financing

The S.T.G IPF filling machine is perfect for all kinds of sticky products  in the food industry like honey, sauces, jams, marmalade, tomato paste, ketchup, chocolate paste, potted meat etc. The machine can be customized with 4 or up to 20 filling heads.

• speeds 25-60 cpm
• power220V 50Hz
• machine controls touchscreen PLC
• Weight 1,200ld
• DIM L10.5ft/W4ft/H7ft,

All Machines Comes With A One Year Warranty.

Contact Us For Quote Or Financing

The S.T.G. Auger Filler  P1 comes with one  or two heads  Filler according to your container size and filling parameters Fillher is perfect for all types of dry products.

• Speed 25-50 cpm
•  Air supply 0.6-0.8MPa
• Power 1.5hp 220V 50Hz
• DIM L10ft*W4ft*H10ft
• Weight 700Ib

All Machines Comes With A One Year Warranty. Contact Us For Quote
